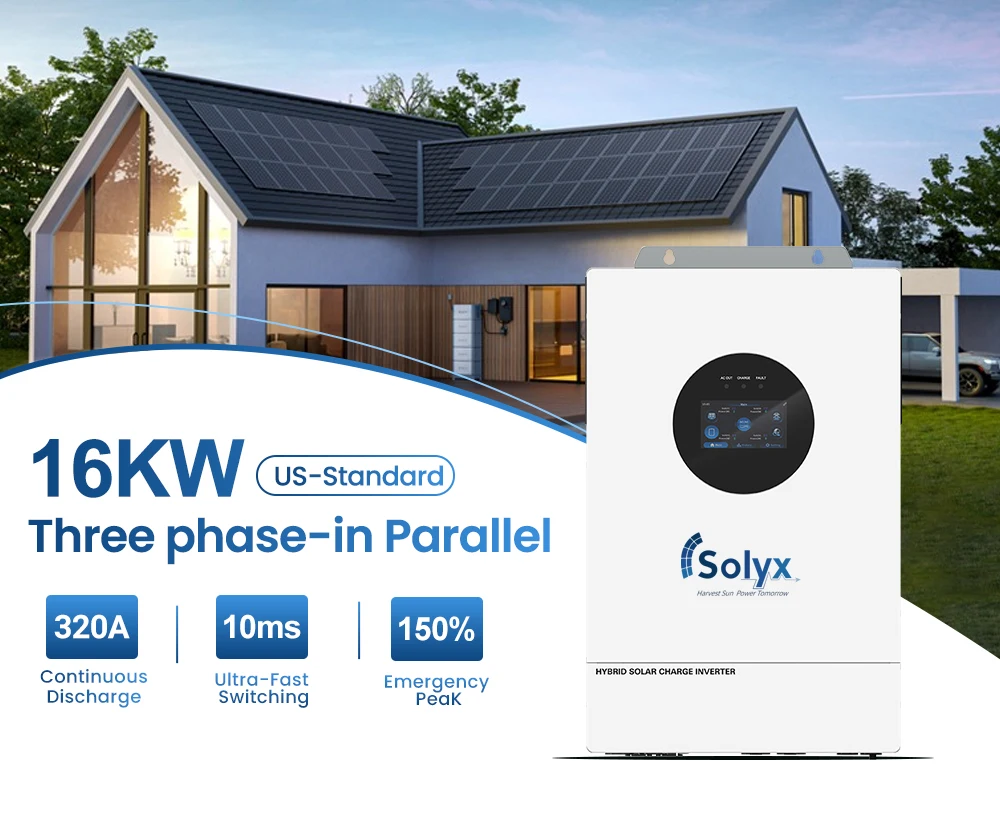

UL1741 US Standard 16KW 48V Three Phase Solar Hybrid Inverter AC Coupled Parallel UPS for USA Commercial Farm Solar Power System
Product Introduction
UL1741 certified 16KW 48V three‑phase hybrid solar inverter tailored for North & Latin America market. This US standard solar storage inverter supports grid‑tied, off‑grid & peak‑shaving operation.
It comes with a built‑in high‑efficiency MPPT charge controller, compatible with 48V lithium and lead‑acid batteries.

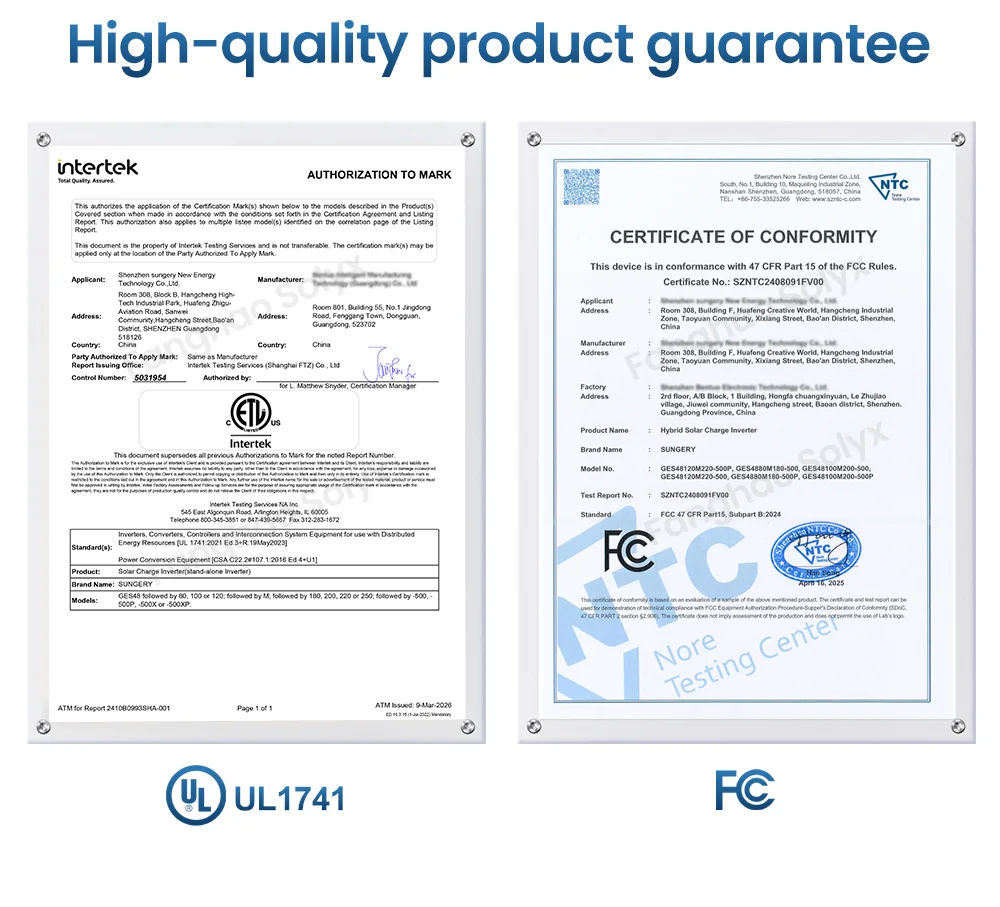

Fully compliant with UL1741 standard for American solar energy systems, ideal for commercial & large residential PV storage projects in USA, Canada and Latin America.
Supports multi‑unit parallel connection, WiFi & Bluetooth remote monitoring, pure sine wave output with comprehensive safety protection.
Product Features

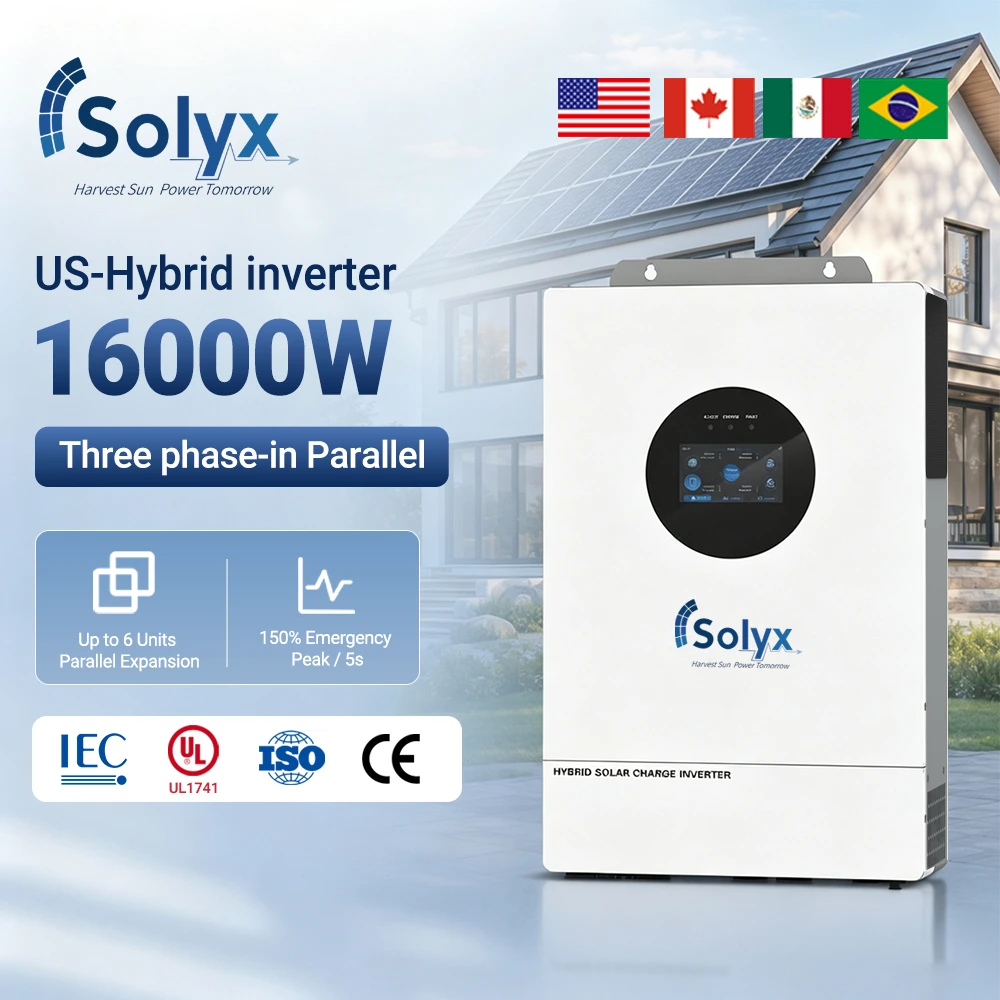

UL1741 US Standard Certified, 16KW 3‑Phase Hybrid Inverter
48V Battery Compatible For North American Solar Storage System
120/208V US Grid Compliant Grid‑Tied & Off‑Grid Operation

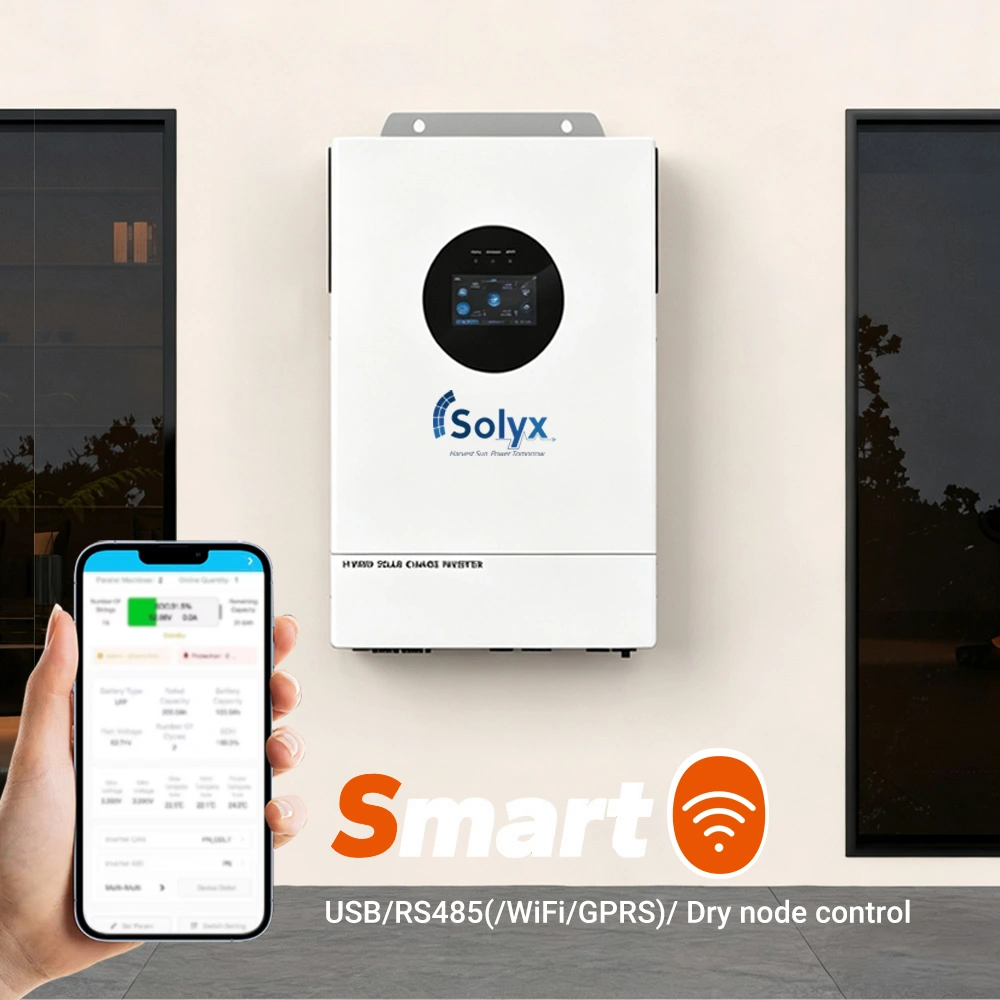

Built‑in High‑Efficiency MPPT, WiFi & Bluetooth Monitoring
Key Highlights of 16KW US Standard Off-grid Inverter
16kW three phase hybrid solar inverter 48V lithium battery system US standard 60Hz UL1741 certified whole house backup power off grid on grid hybrid solar system American residential villa suburban household energy storage peak valley arbitrage power outage emergency supply solar installers EPC contractor solar distributor supply north america grid compliant anti islanding protection IEEE 1547 compatible

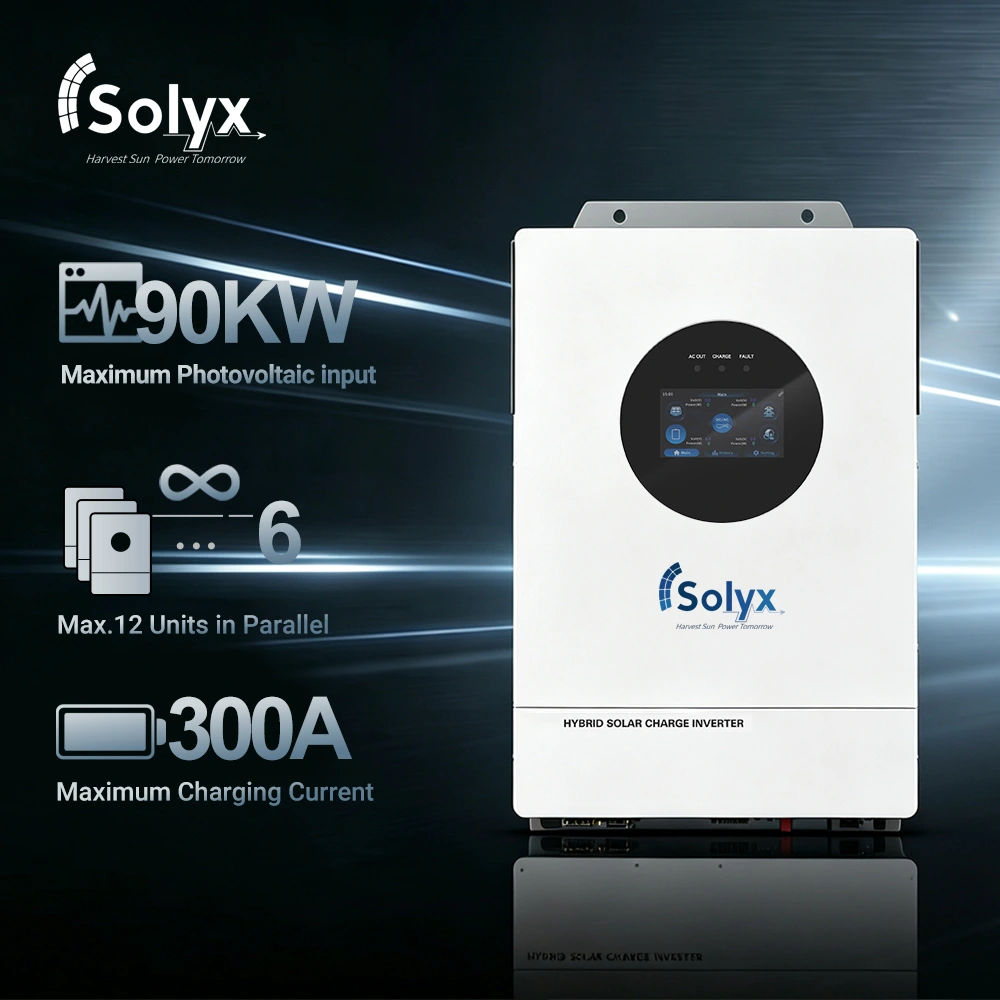

24kW dual channel MPPT 32A per channel AC coupling three phase independent CT anti reverse current 150% 5s emergency peak power 100% unbalanced load capability 6 units parallel expand max 90kW UL1741 compliant US commercial solar farm ranch workshop warehouse retail store small factory industrial power storage
320A continuous discharge 300A max charging current dedicated generator input dry contact start stop control 7HP heavy motor load compatible full short circuit overload over voltage under voltage protection 10ms UPS level seamless switching critical load uninterrupted power supply UL1741 certified US remote cabin island cottage agricultural irrigation machinery power equipment solar backupsolution
51.2V rated battery input voltage 40V to 58.6V adjustable battery voltage range 63A 3pole bypass circuit breaker capacitive touch color screen remote diagnostics OTA upgrade low power saving mode self consumption below 25W per phase over 91% high efficiency 50Hz 60Hz switchable frequency pure sine wave output UL1741 standard US north america grid solar storage inverter for solar project wholesaler lithium iron phosphate battery compatible
multi safety protection module ground fault protection battery reverse connection protection PV reverse polarity protection expandable energy storage system outdoor solar power station UL1741 SA compliant US rural solar system commercial office building shopping mall gas station backup power industrial generator matching hybrid inverter california hawaii solar system utility company approved distributed energy resource equipment
Parallel mode
Permitted parallel number
1-6
AC Mode
Rated input voltage
3L/N/PE 120/208Vac
Input voltage range
(85Vac~140Vac)±2%
Frequency
50Hz/60Hz (Auto detection)
Frequency Range
47+0.3Hz~55±0.3Hz(50Hz);57+0.3Hz~65±0.3Hz (60Hz)
Overload/short circuit protection
Circuit breaker
Efficiency
>95%
Conversion time (bypass and inverter)
10ms (typical)
AC reverse protection
Yes
Maximum bypass overload current
3pole, 60A/60A/60A(L1/L2/L3)
Inverter Mode
Output voltage waveform
Pure sine wave
Rated output power (VA)
16000(VA)
Rated output power (W)
16000(W)
Power factor
1
Rated output voltage (Vac)
3L/N/PE 120/208Vac
Output voltage error
±5%
Output frequency range (Hz)
50Hz+0.3Hz/60Hz+0.3Hz
Maximum Efficiency
>91%
Overload protection
(105% < load <110%) +5%: report error and turn off the output after 5 minutes; (110% < load < 125%) 5%: report error and turn off the output after 10 seconds; Load >125% +5%: report error and turn off the output after 2 seconds;
Peak power
22500VA
Loaded motor capability
7HP
Output short circuit protection
Can protect, after continuous short circuit for 1 second
Bypass circuit breaker specification
3pole, 63Aac/63Aac/63Aac(L1/L2/L3)
Rated battery input voltage
51.2V (Minimum starting voltage 44Vdc)
Battery voltage range
40.0Vdc~58.6Vdc+0.6Vdc (Under voltage alarm/shutdown voltage/over voltage alarm /over voltage recovery.. settable on LCD screen)
Power saving mode self-consumption
Load per phase is null or less than 25W enter power-saving mode
